Builds a single-factor reflective measurement model: one latent continuous factor with directed loadings onto observed continuous indicators, the first loading fixed to 1 for scaling, residual variances implied, and a person plate.

Usage

umg_factor(
  factor = "F",
  indicators = c("y1", "y2", "y3"),
  loadings = NULL,
  factor_label = NULL,
  indicator_labels = NULL,
  plate_index = "i = 1, ..., N",
  dist = "N(0, psi)"
)

Arguments

factor

Name of the latent factor (character scalar).

indicators

Character vector of indicator names (>= 2).

loadings

Optional character vector of loading labels for the free loadings (the indicators after the first), so of length length(indicators) - 1. A vector of length length(indicators) is also accepted, in which case its first element (the fixed marker loading) is ignored. Defaults to lambda[k].

factor_label, indicator_labels

Optional display labels.

plate_index

Index label for the person plate.

dist

Distribution annotation for the factor (source vertex).

Value

An object of class umg.

Examples

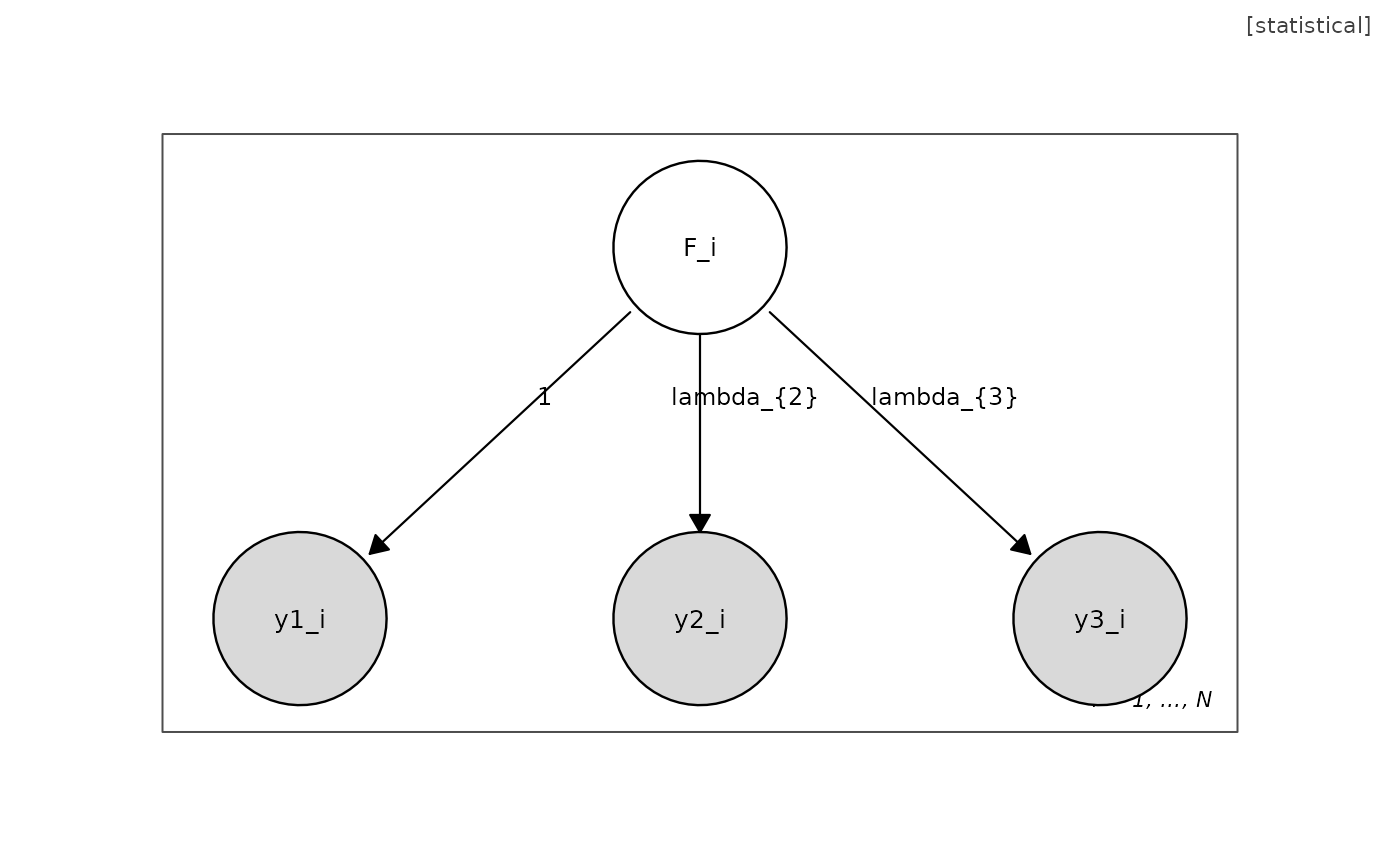

m <- umg_factor("F", c("y1", "y2", "y3"))
plot(m)
